Thirteen 3-, 4- and 5-axis CNC machines in Ibi (Alicante), Spain, with travels up to 8 × 3 × 2 m, plus CNC turning. Molds, models, tooling and technical parts in metal, tooling board and composites, inspected before they leave our plant.
Trimming and drilling of carbon fiber, fiberglass, Kevlar and other composite parts
Tooling board, resins and technical foams
Machine fleet
Thirteen CNC machines in Ibi.
3-, 4- and 5-axis technology and CNC turning for both soft and hard materials, from a precision technical part to an 8-meter mold.
5-axis
Vurcon P30
8,000 × 3,000 × 2,000 mm

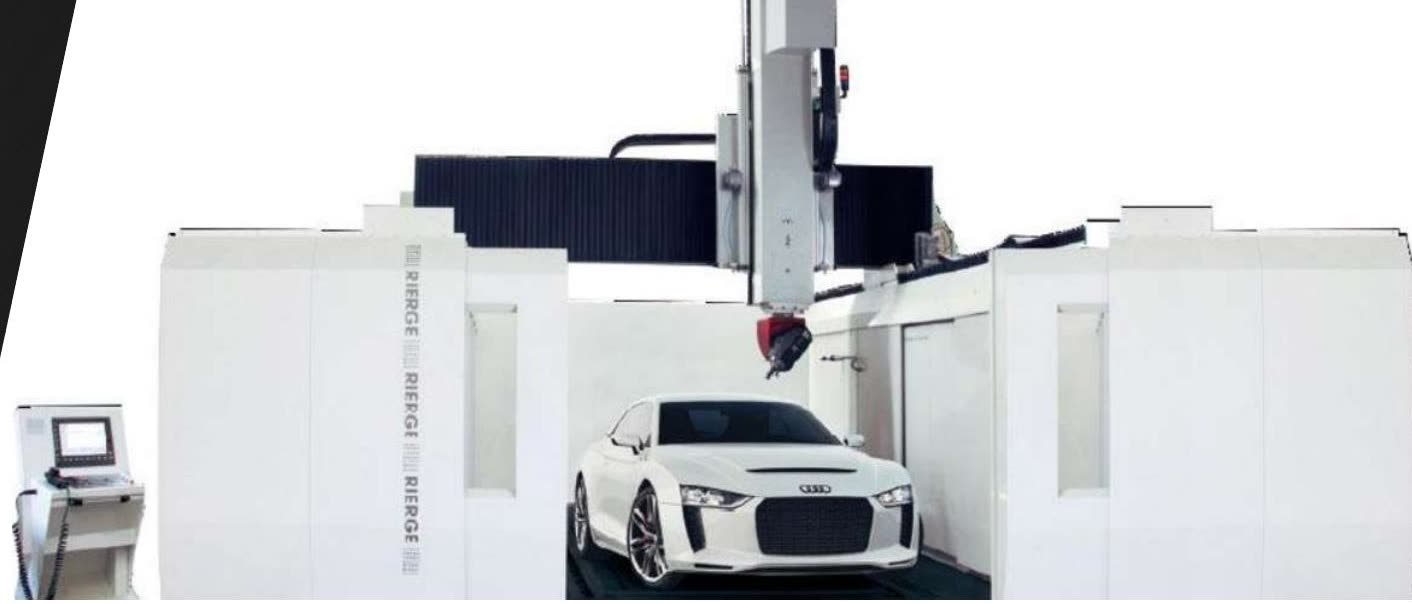

Rierge SJN 5060 Excel
6,000 × 3,000 × 1,600 mm

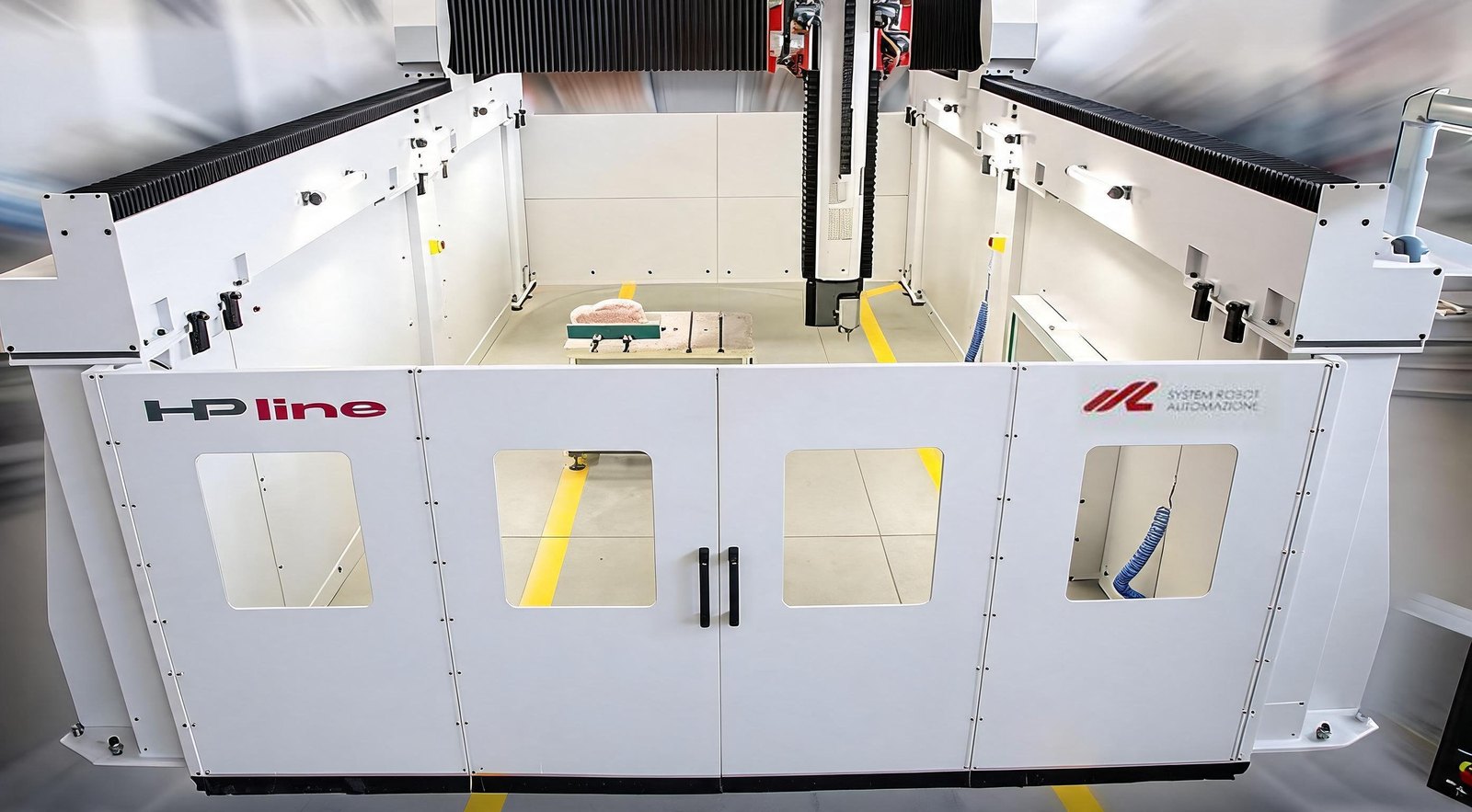

SR-HP-Line
6,000 × 3,000 × 1,600 mm

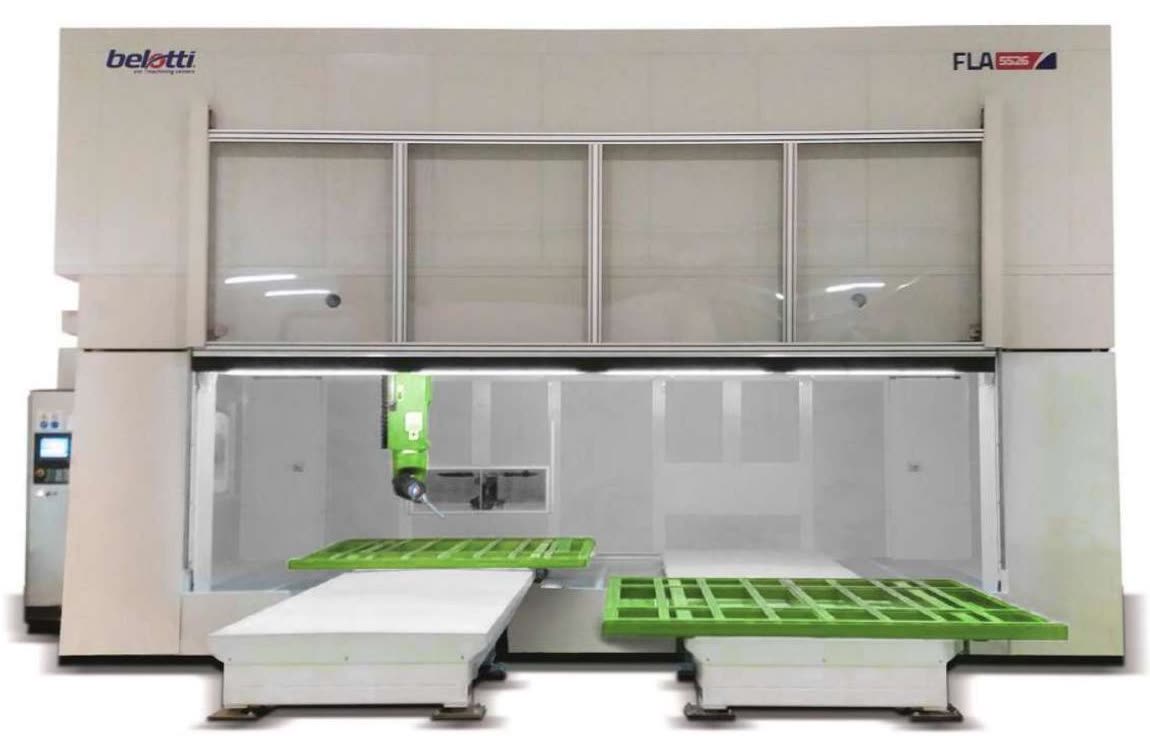

Belotti FLA
5,500 × 2,600 × 2,000 mm

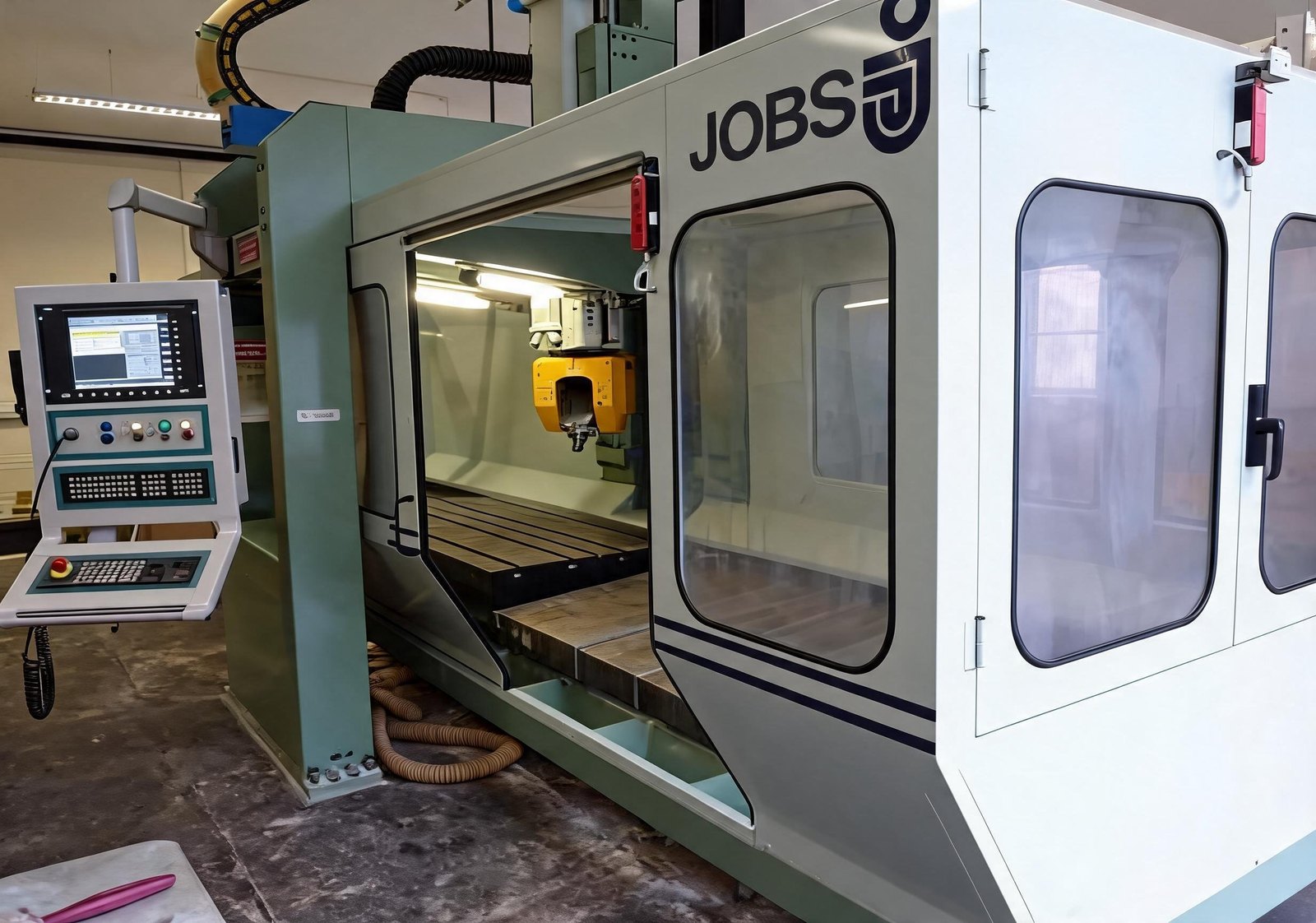

JOBS Jomach 131
2,500 × 1,200 × 800 mm · Siemens 840D CNC
4- and 3-axis

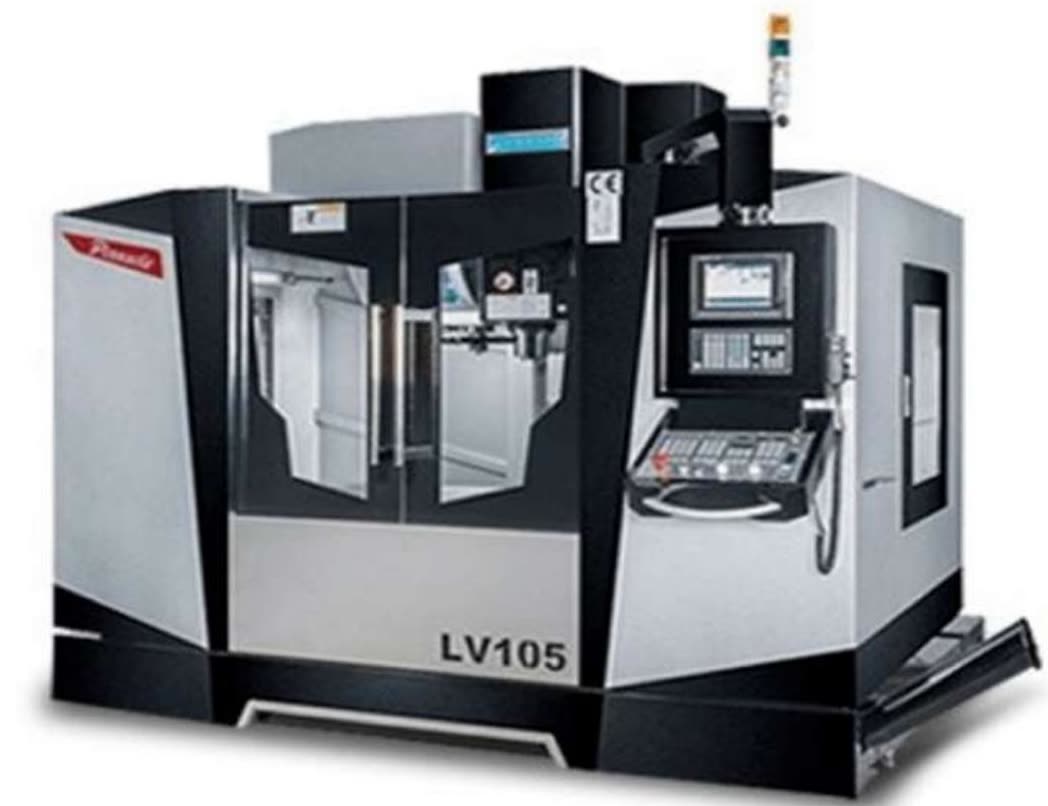

Pinnacle LV105
1,000 × 600 × 500 mm

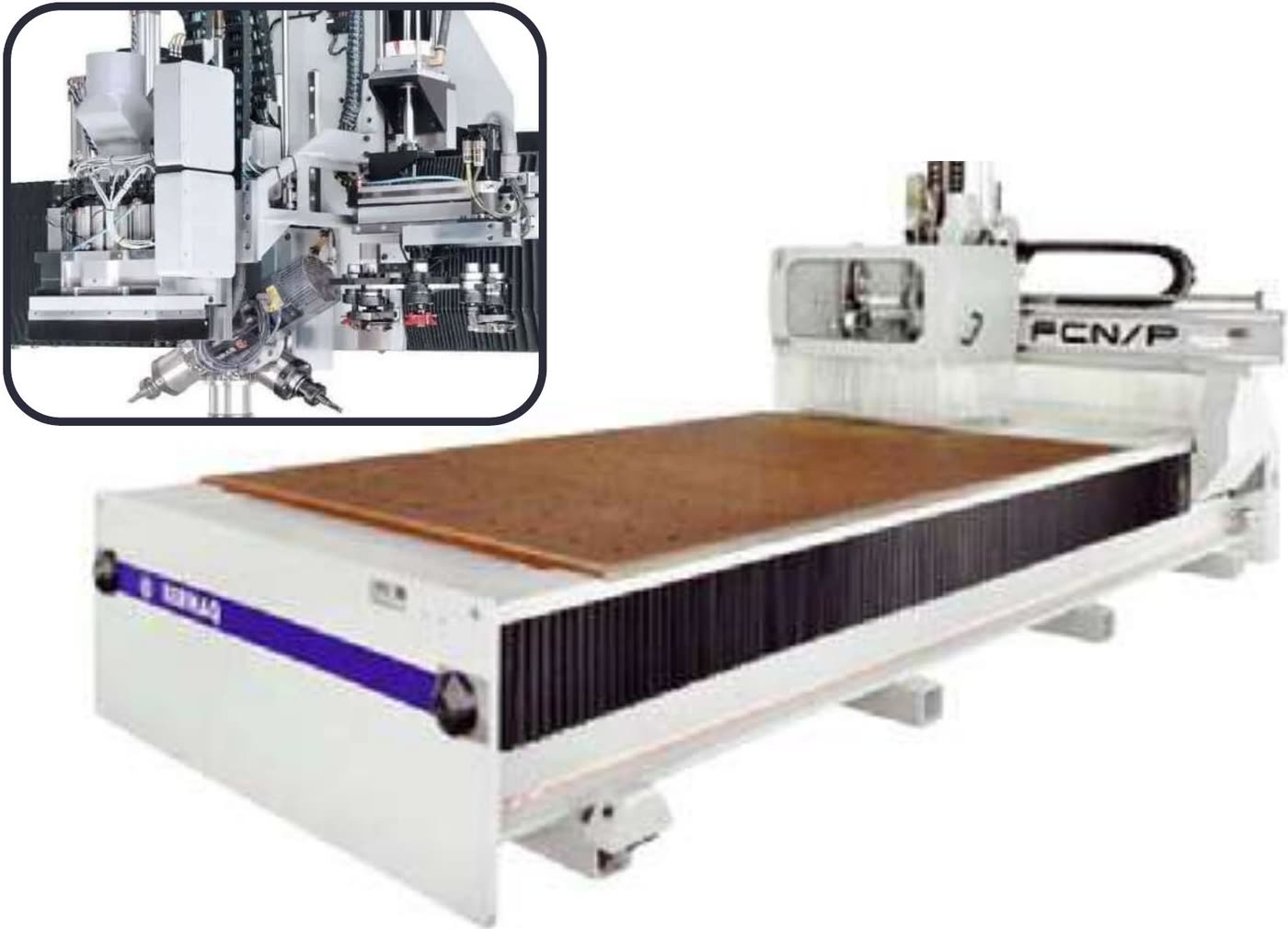

Bermaq
4,200 × 2,100 × 400 mm
3-axis and CNC turning
× 3 units

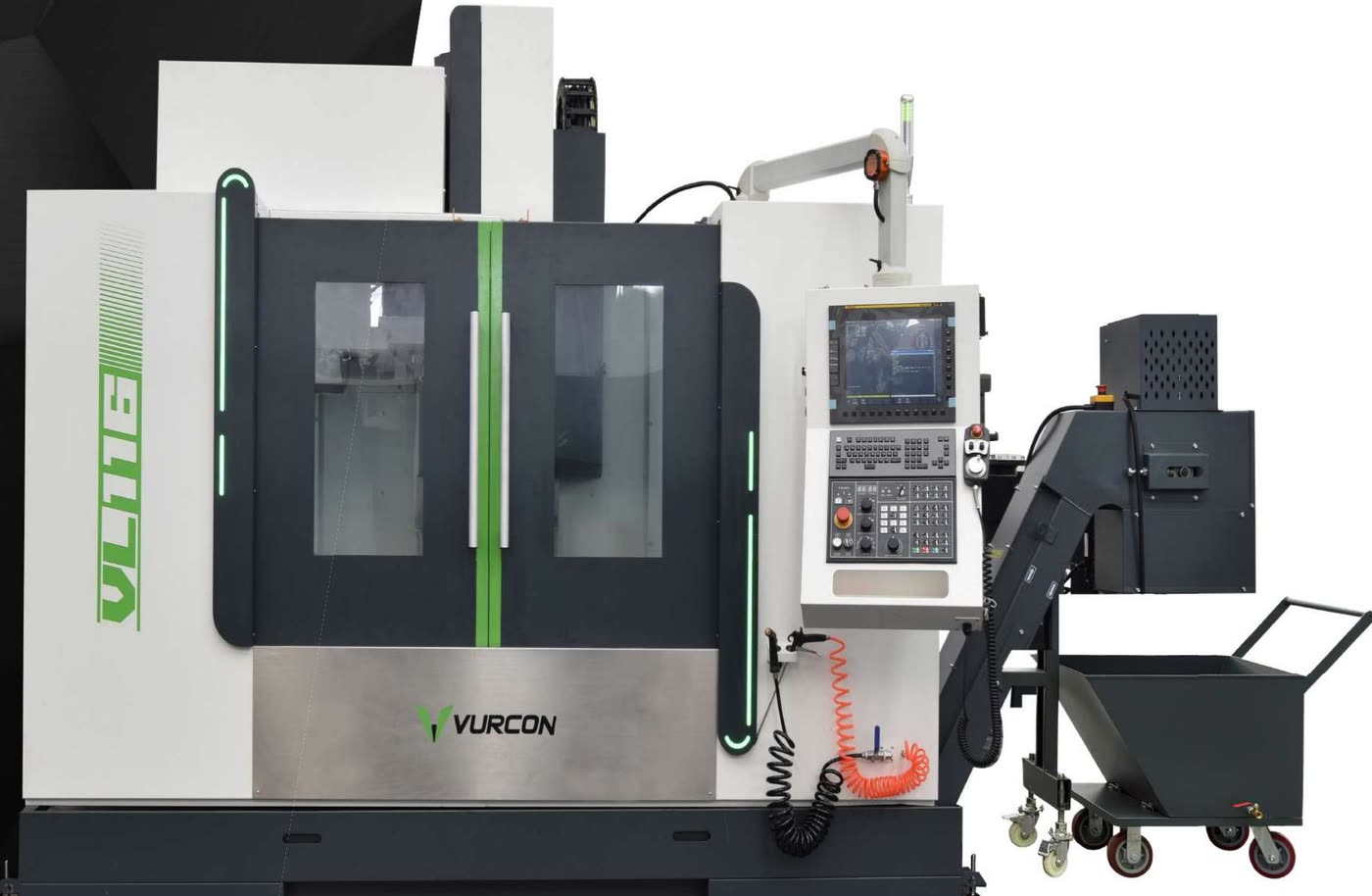

Vurcon VL116
1,100 × 610 × 630 mm

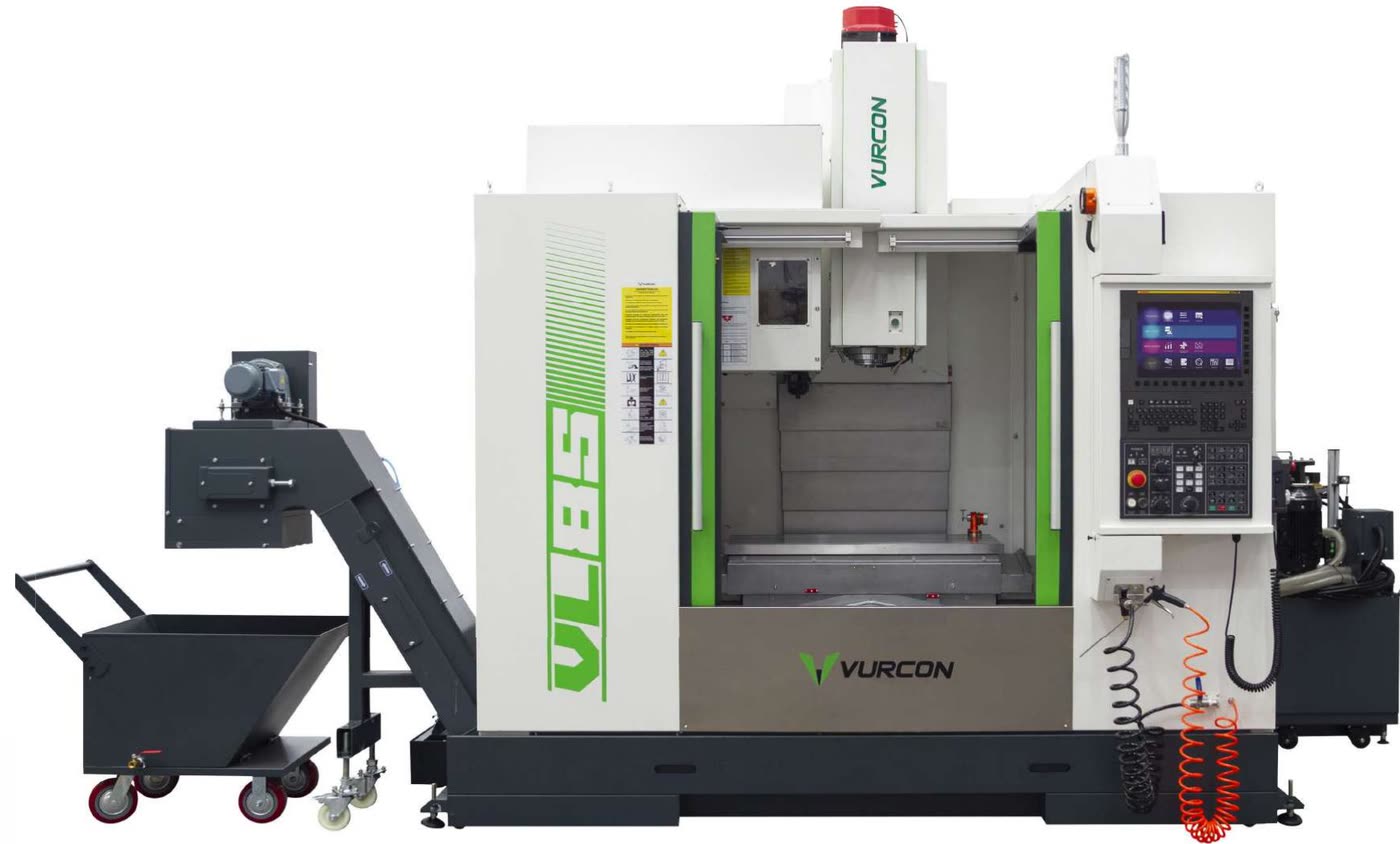

Vurcon VL85
850 × 500 × 550 mm

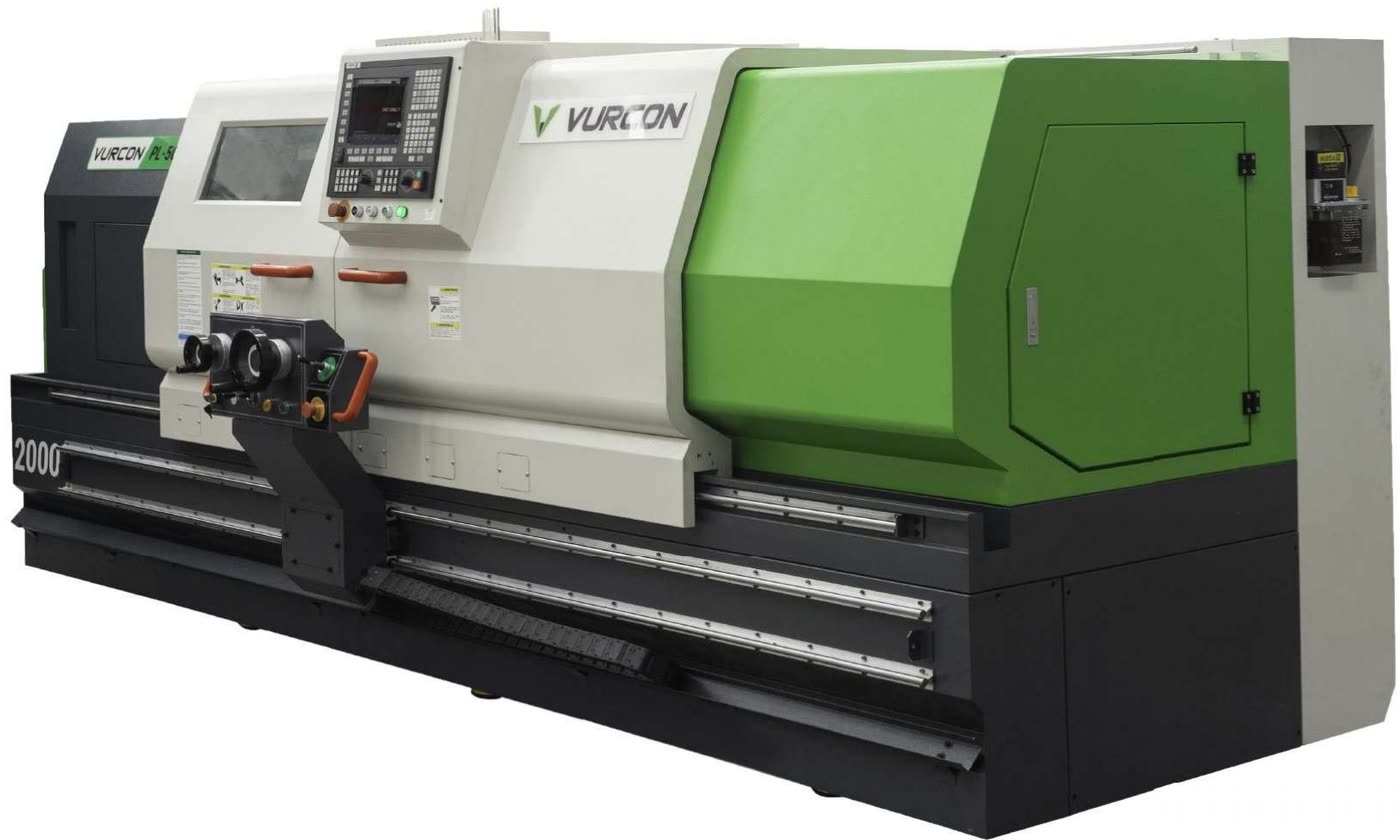

PL-50x2000 lathe
CNC turning

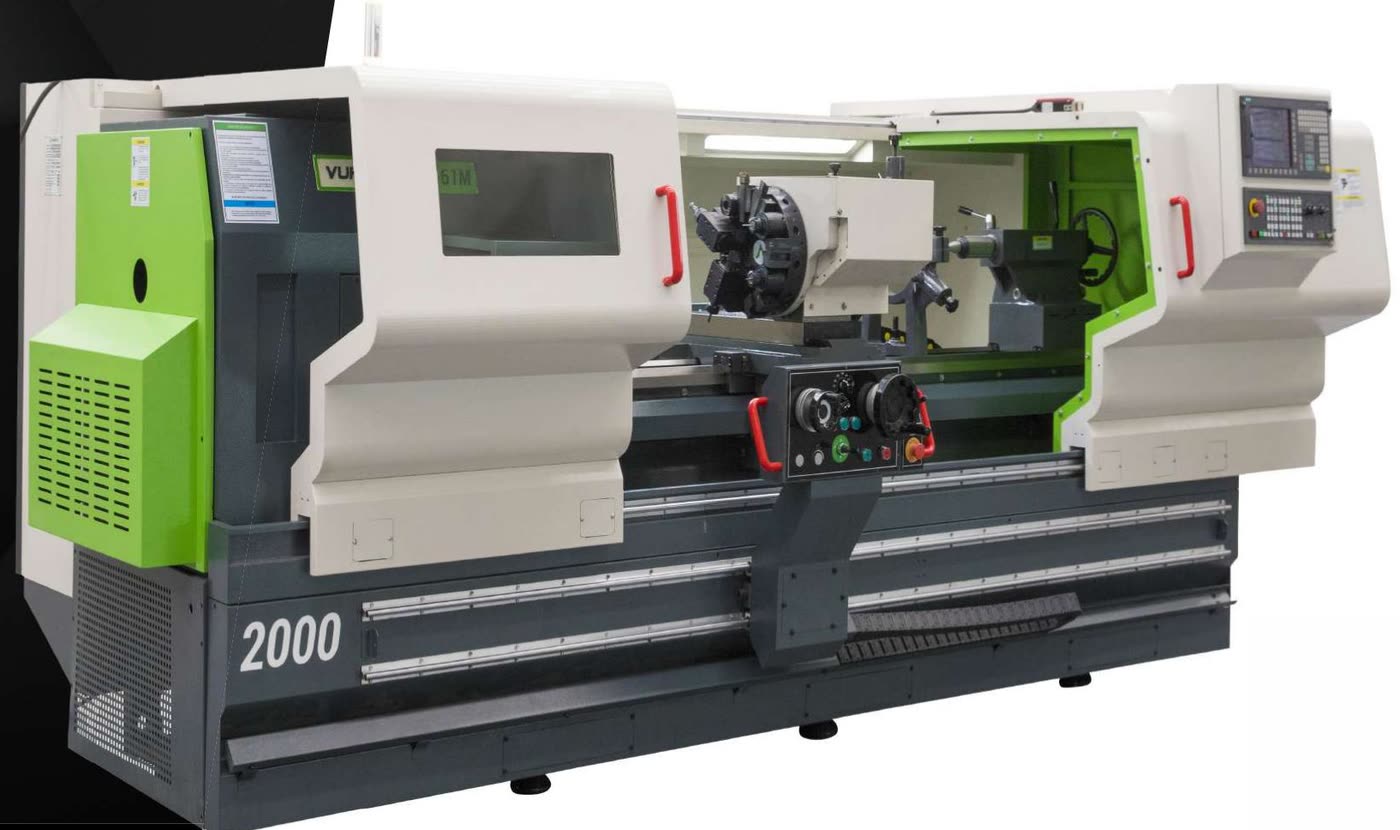

PL-61Mx2000 lathe
CNC turning with live tooling
01
We receive your file
STEP, IGES, STL or a drawing. If all you have is the part, we 3D scan it and create the model.
02
We program and fixture
CAD-CAM engineering office with hyperMILL: we define the machining strategy, tooling and workholding to suit the material and geometry.
03
We machine and measure
We verify the part with our FARO equipment before delivery.
Our work
Molds, models and technical parts.
Machining experience in mold making, automotive, aerospace, defense and renewable energy.

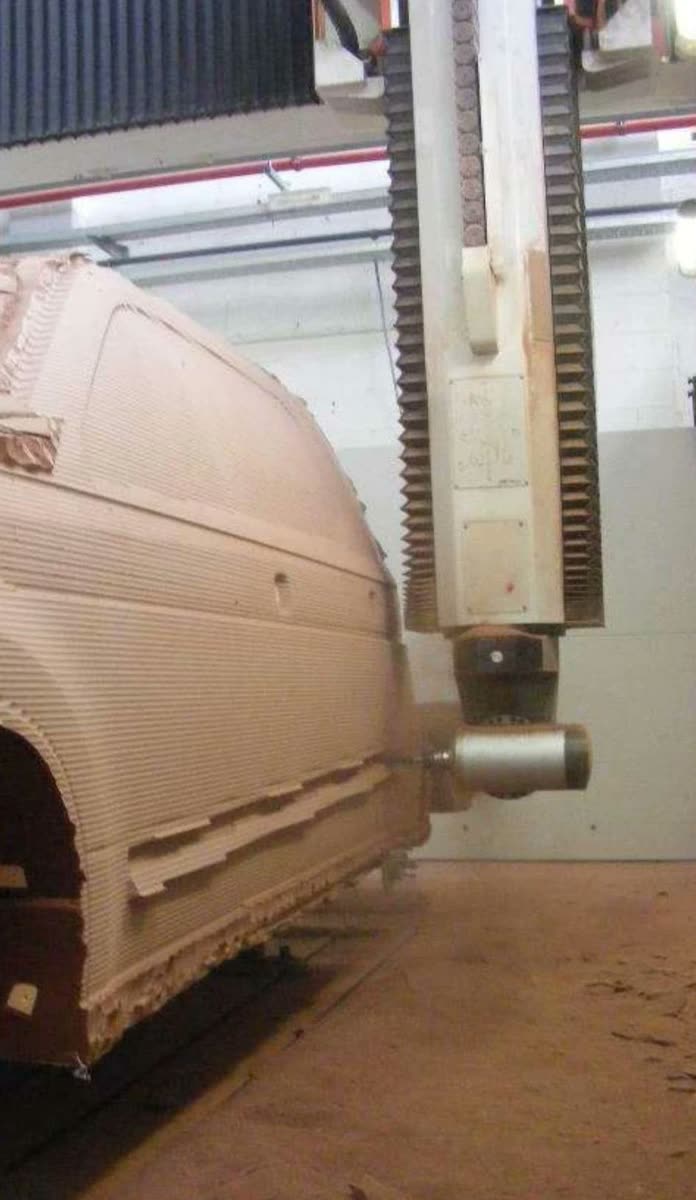

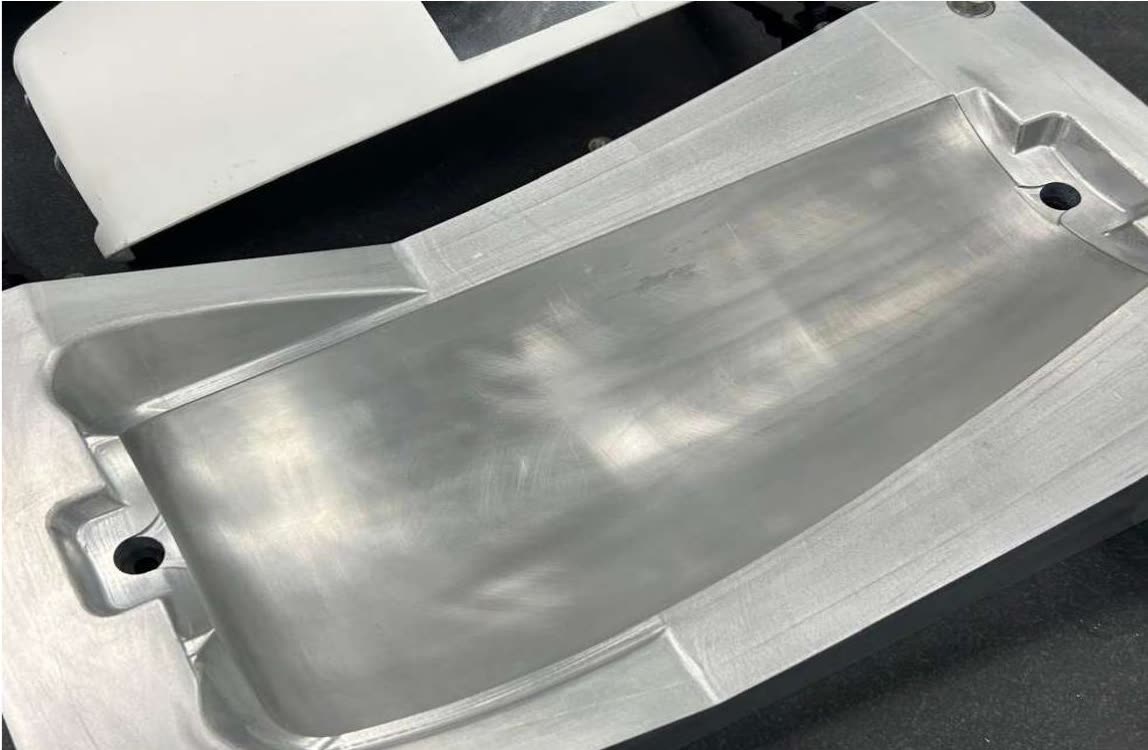

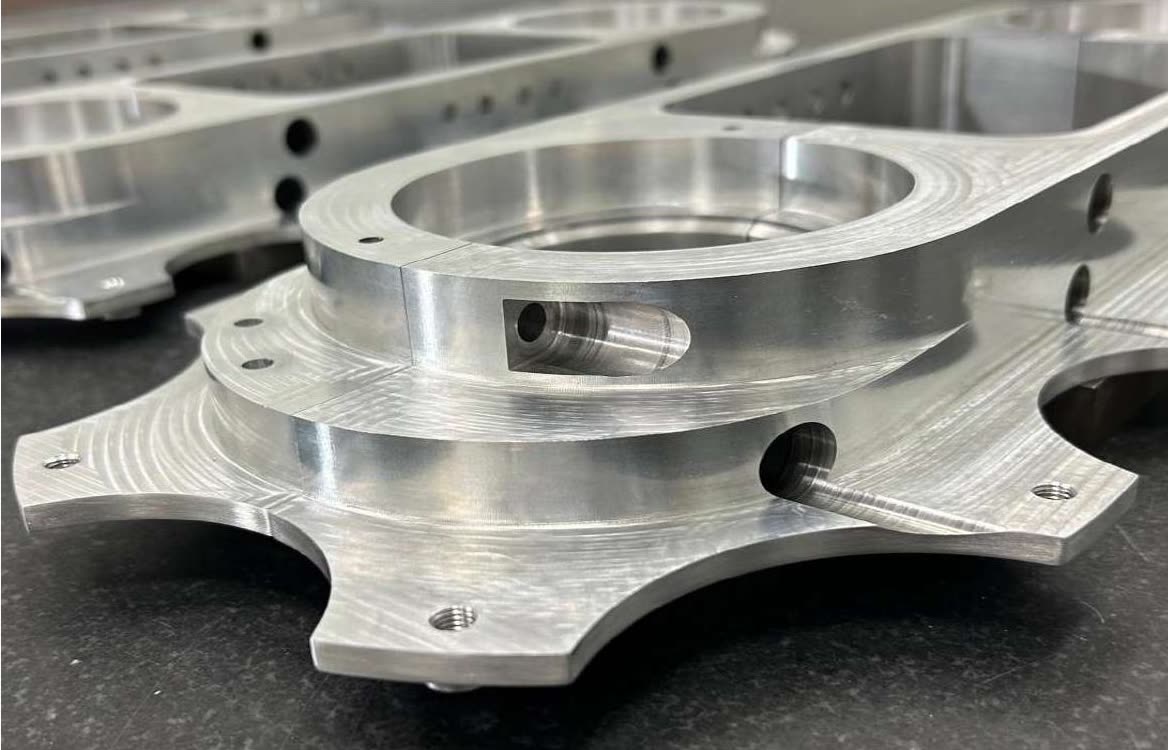

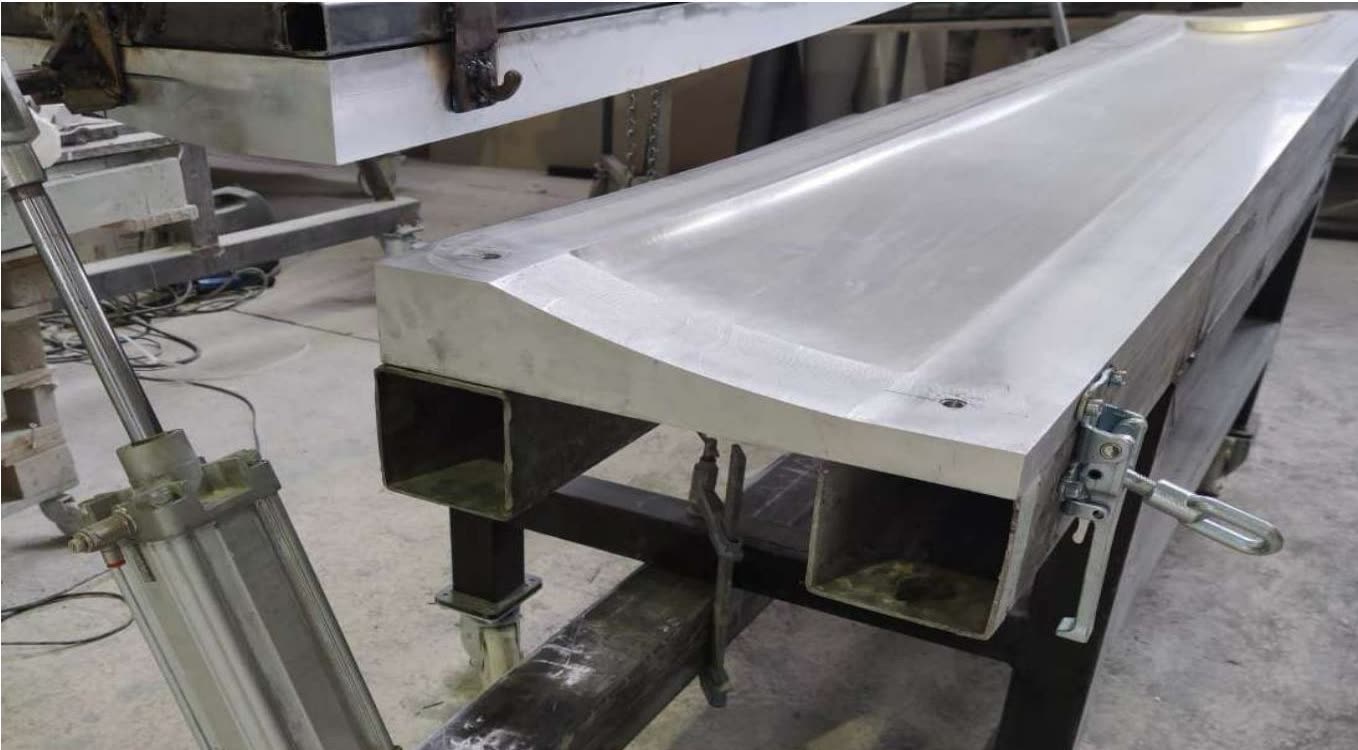

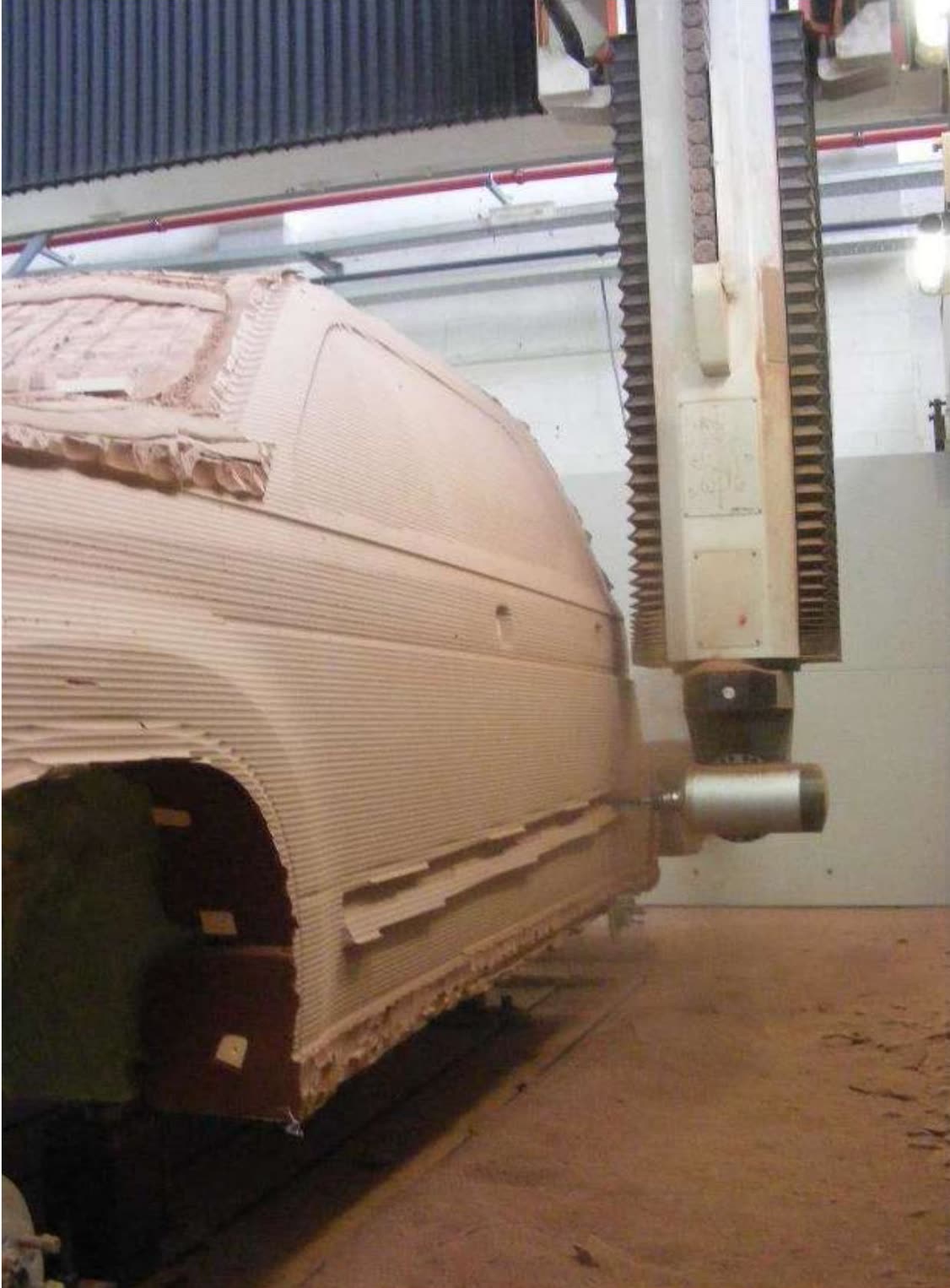

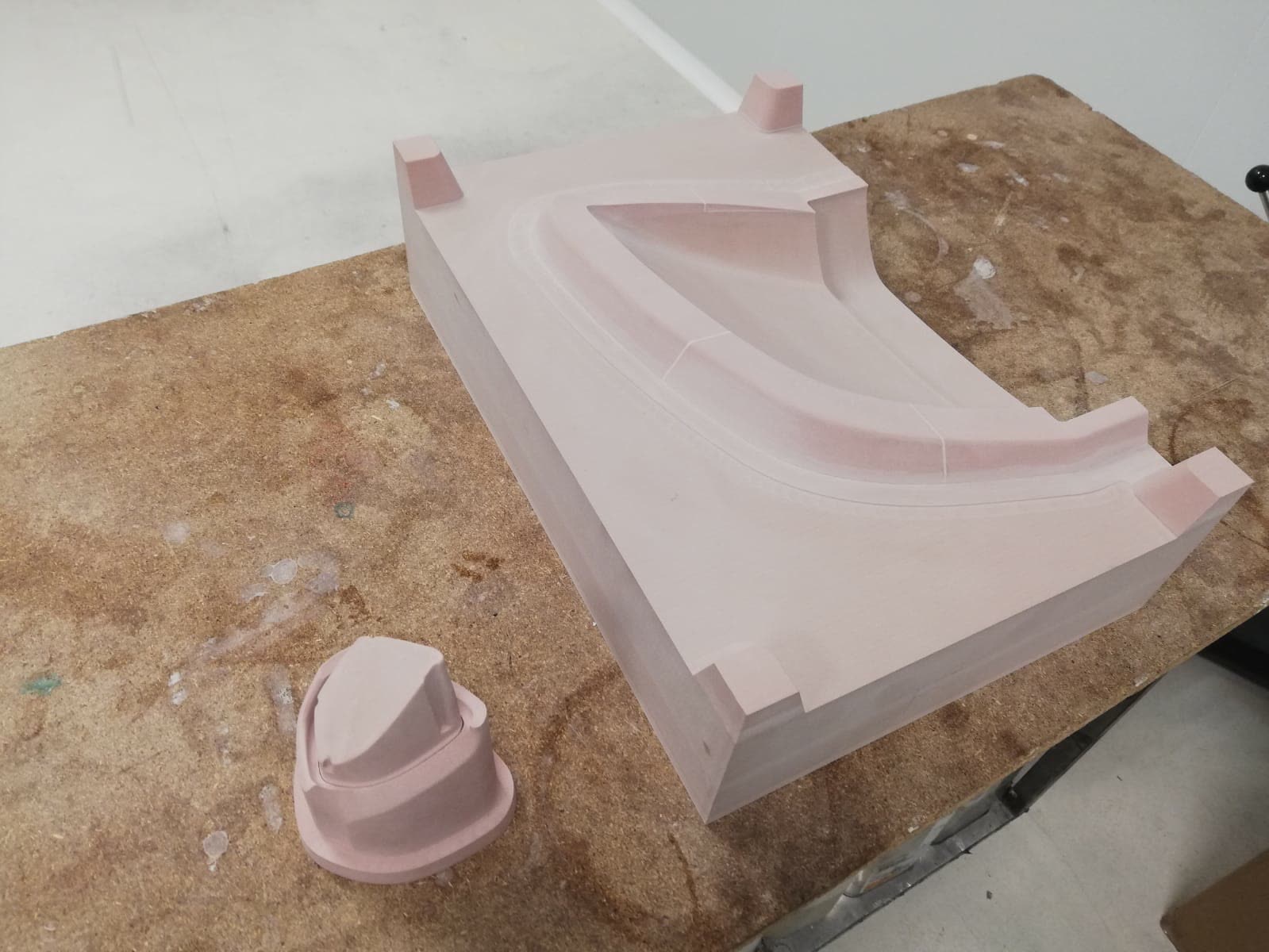

Aluminum technical partMilling an aluminum moldCar body modelFinished aluminum moldLong-format moldTooling board mold with insert
For composite manufacturers
Do your own layup? We’ll machine your mold.
We machine molds, models and tooling for companies that laminate their own parts, and deliver the mold already measured. Your designs and your molds belong to you: we work in complete confidentiality.
And if on a given project you would rather we handle the lamination too, we do it in the same plant.
Send us your drawing or 3D model, and we’ll bring it to life.
We study your project with the same care you put into designing it, then send you a clear proposal covering process, lead time and price. Only have the physical part? We’ll scan it and take it from there.
Ideally a 3D model in STEP or IGES and, if there are critical tolerances, a drawing in PDF or DWG. If you don’t have a model, we can scan the physical part.
What is the largest part you can machine?
Our largest 5-axis machining center, a Vurcon P30, handles parts up to 8 × 3 × 2 m. Larger parts can be machined in sections.
What materials do you machine?
Aluminum, steel and other metals, tooling board, resins, technical foams, and carbon fiber, fiberglass, Kevlar and other composite parts.
Do you inspect machined parts?
Yes. Metrology is at the heart of our process: we verify molds and parts with FARO equipment and, if you need it, provide a dimensional report.
Do you make one-off parts or only production runs?
Both. We produce prototypes, one-off parts and short runs.
